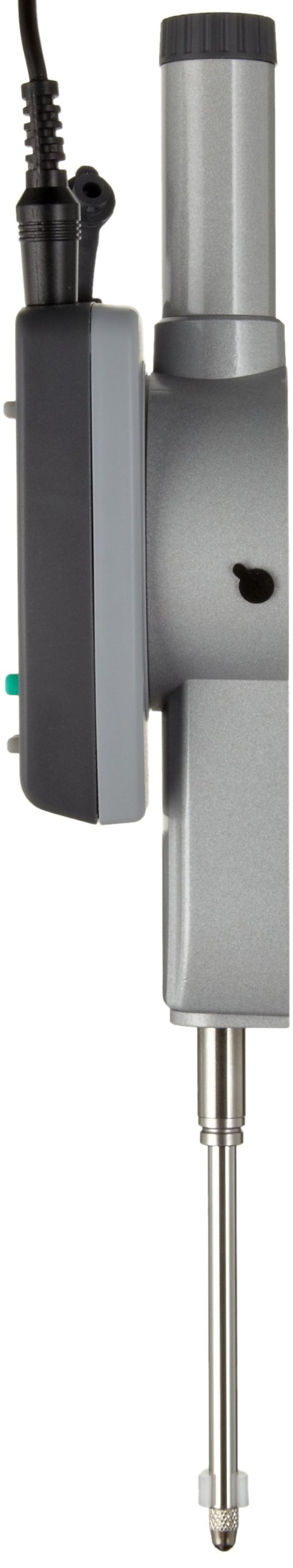

Mitutoyo 543-551A Indicador digital digital LCD absoluto ID-F, con LCD retroiluminado, rosca M2.5X0.45, diámetro de vástago de 8 mm, rango de 0-25 mm, graduación de 0,001 mm, precisión de +/-0,003 mm
- Marca: Mitutoyo
- Código de Producto: B003UATPUS
-With the absolute linear encoder technology, once the measurement reference point has been preset it will not be lost when the power is turned on
-An analog bar indicator has been integrated to handle upper/lower limit approaching and zero approaching
-It enhances the ease of operation in the same manner as a dial indicator. The display range of the analog bar can be changed
-With SPC data output
-Stem diameter 8mm, M2.5 x 0.45 Thread
GO/+/-NG judgment is performed by setting the upper and lower tolerances if a judgment result is out of tolerance, The display backlighting changes from green to red, so tolerance judgment can be made at a glance. The maximum, minimum, or runout value can be displayed during measurement. Length standard: absolute electrostatic capacitance type linear encoder, max. Response speed: unlimited, measuring force: 1.8n/2.3n or less (50mm range models), power supply: 9v dc (via ac adaptor, origin-set/preset, zeroset, go/+/-ng judgment, max/min value hold, runout measurement, resolution switching, counting direction switching, power on/off, data output, inch/mm conversion (on inch/metric models only) alarm: low voltage, counting value composition error, over-flow error, tolerance limit setting error.
-An analog bar indicator has been integrated to handle upper/lower limit approaching and zero approaching
-It enhances the ease of operation in the same manner as a dial indicator. The display range of the analog bar can be changed
-With SPC data output
-Stem diameter 8mm, M2.5 x 0.45 Thread
GO/+/-NG judgment is performed by setting the upper and lower tolerances if a judgment result is out of tolerance, The display backlighting changes from green to red, so tolerance judgment can be made at a glance. The maximum, minimum, or runout value can be displayed during measurement. Length standard: absolute electrostatic capacitance type linear encoder, max. Response speed: unlimited, measuring force: 1.8n/2.3n or less (50mm range models), power supply: 9v dc (via ac adaptor, origin-set/preset, zeroset, go/+/-ng judgment, max/min value hold, runout measurement, resolution switching, counting direction switching, power on/off, data output, inch/mm conversion (on inch/metric models only) alarm: low voltage, counting value composition error, over-flow error, tolerance limit setting error.
